> Spherical Roller Bearings E Series

Products

Spherical Roller Bearings E Series

Symmetrical rollers, two window-type steel cages centered on the inner ring, a flangeless inner ring and a floating guide ring between the two roller rows.

Technical details Spherical Roller Bearings E Series

Spherical Roller Bearings CA Series

Symmetrical rollers, have side shoulds and central guide rib floating on the inner ring, double brass pronged machined cage between the two roller rows, Maintenance-free

Technical details Spherical Roller Bearings CA Series

Spherical Roller Bearings CC Series

Symmetrical rollers, two window-type steel cages which are inner ring centered via a floating guide ring between the two roller rows.

Technical details Spherical Roller Bearings CC Series

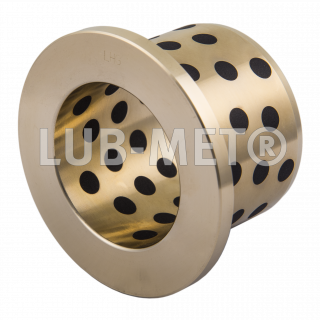

LUB-MET®

solid bushing, bronze with lubricant plugs embedded, DIN 1850/ISO 4379, Maintenance-free

Technical details LUB-MET®

Specific load capacity static 150 [N/mm2]
Specific load capacity dynamic 100 [N/mm2]
Sliding speed ≤ 0.3 to 1.0 [m/s]
Friction value *** 0.03 [µ] to 0.2 [µ] lubricated/dry
Temperature strain - 100 [°C] to + 300 [°C]
Max. PV-value 1.5 [N/mm² x m/s]
Hardness: 190-220 HB

solid bushing bronze with lubricant plugs embedded

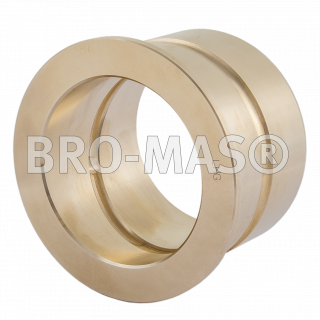

BRO-MAS®

Solid turned bronze bushing, heavy-maintenance, DIN 1850/ISO 4379, Heavy maintenance

Technical details BRO-MAS®

Specific load capacity static ≤ 150 [N/mm2]
Specific load capacity dynamic < 60 [N/mm2]
Sliding speed ≤ 10.0 [m/s] depends on lubrication - strain
Temperature strain - 40 [°C] to + 150 [°C]

solid turned bronze bushing heavy maintenance

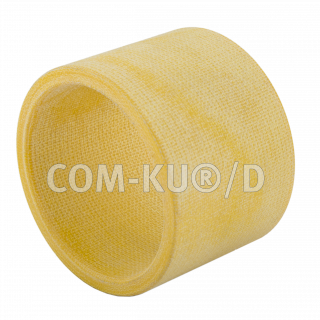

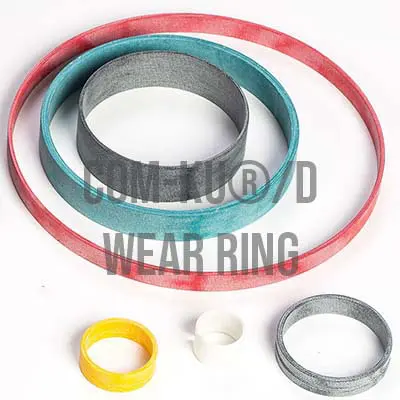

COM-KU®/D

Fibre-reinforced composite bushing, Maintenance-free

Technical details COM-KU®/D

Specific load capacity static ≤ 300 [N/mm2]
Specific load capacity dynamic ≤ 85 [N/mm2]
Sliding speed 0.6 [m/s]
Friction value *** 0.04 [µ] to 0.1 [µ]
Temperature strain -70 [°C] to 100 [°C] 130°C Short Term
Max. PV-value 0.4 [N/mm² x m/s]
COM-KU®/D comes in different grades for various applications and demands. Please consult our Technical Sales Engineer for more details.

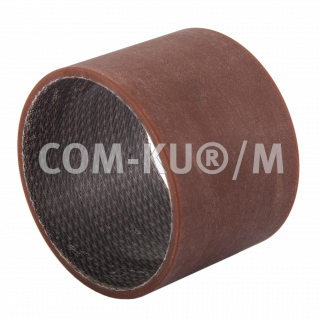

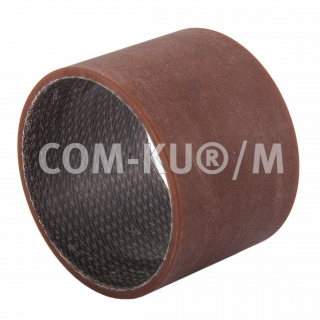

COM-KU®/M

Composite bushing, specially woven PTFE filament and fibre glass backing, Maintenance-free

Technical details COM-KU®/M

Specific load capacity static ≤ 240 [N/mm2]
Specific load capacity dynamic ≤ 140 [N/mm2]
Sliding speed ≤ 0.2 [m/s]
Friction value *** 0.03 [µ] to 0.12 [µ]
Temperature strain - 100 [°C] to + 160 [°C]
Max. PV-value 1.8 [N/mm² x m/s]
Moisture absorption 0.15 [% at 20°C in 24h]

woven PTFE filament and fibre glass backing

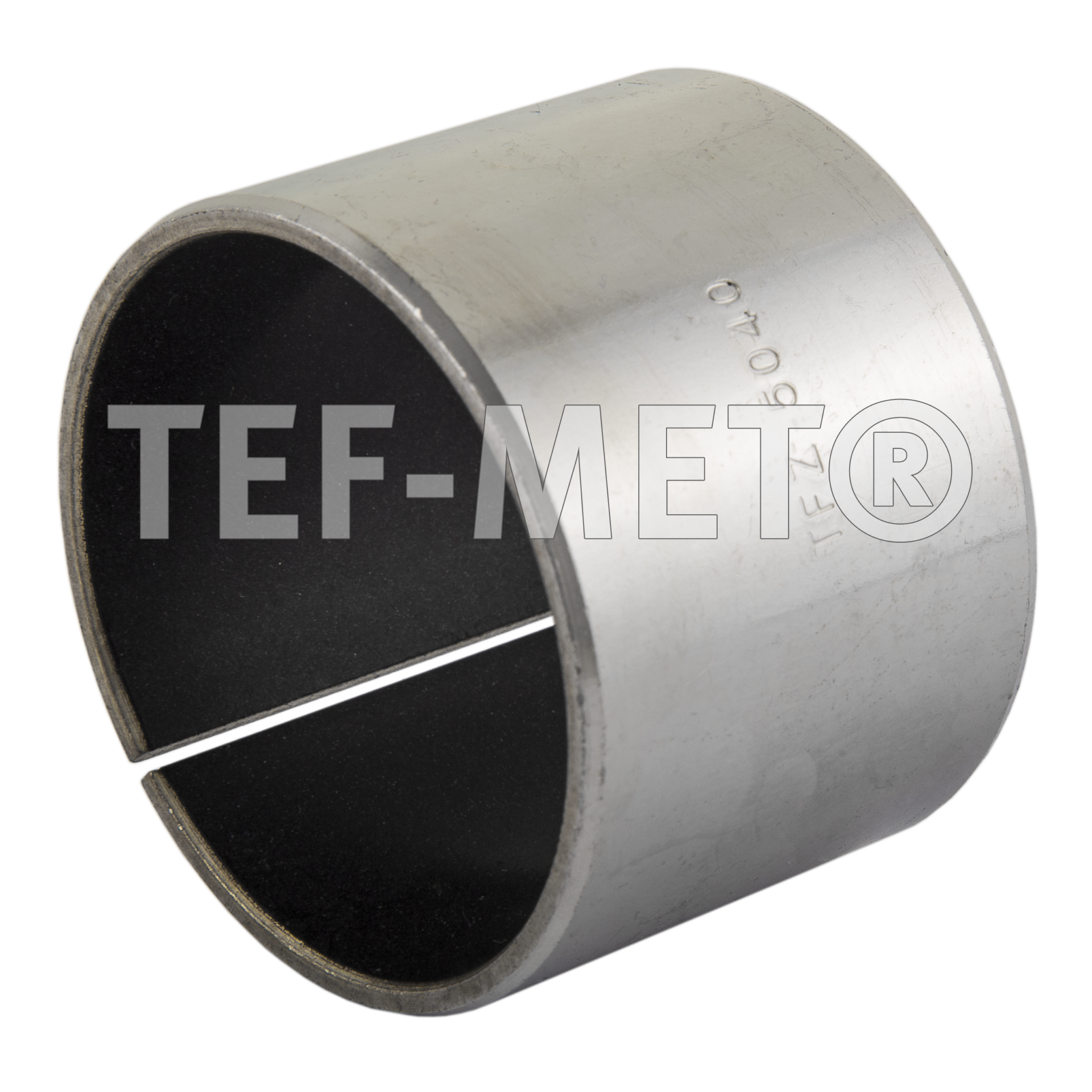

TEF-MET®

Wrapped composite sliding bearing, tin-plated steel/PTFE, DIN 1494/ISO 3547, Maintenance-free

Technical details TEF-MET®

Specific load capacity static ≤ 250 [N/mm2]
Specific load capacity dynamic ≤ 140 [N/mm2] at low sliding speed
Sliding speed ≤ 2.5 [m/s]
Friction value *** 0.03 [µ] to 0.25 [µ]
Temperature strain -200 [°C] to +280 [°C]
Max. PV-value 1.8 [N/mm² x m/s] 3.6 [N/mm² x m/s] for short time

wrapped composite sliding bearing tin plated steel

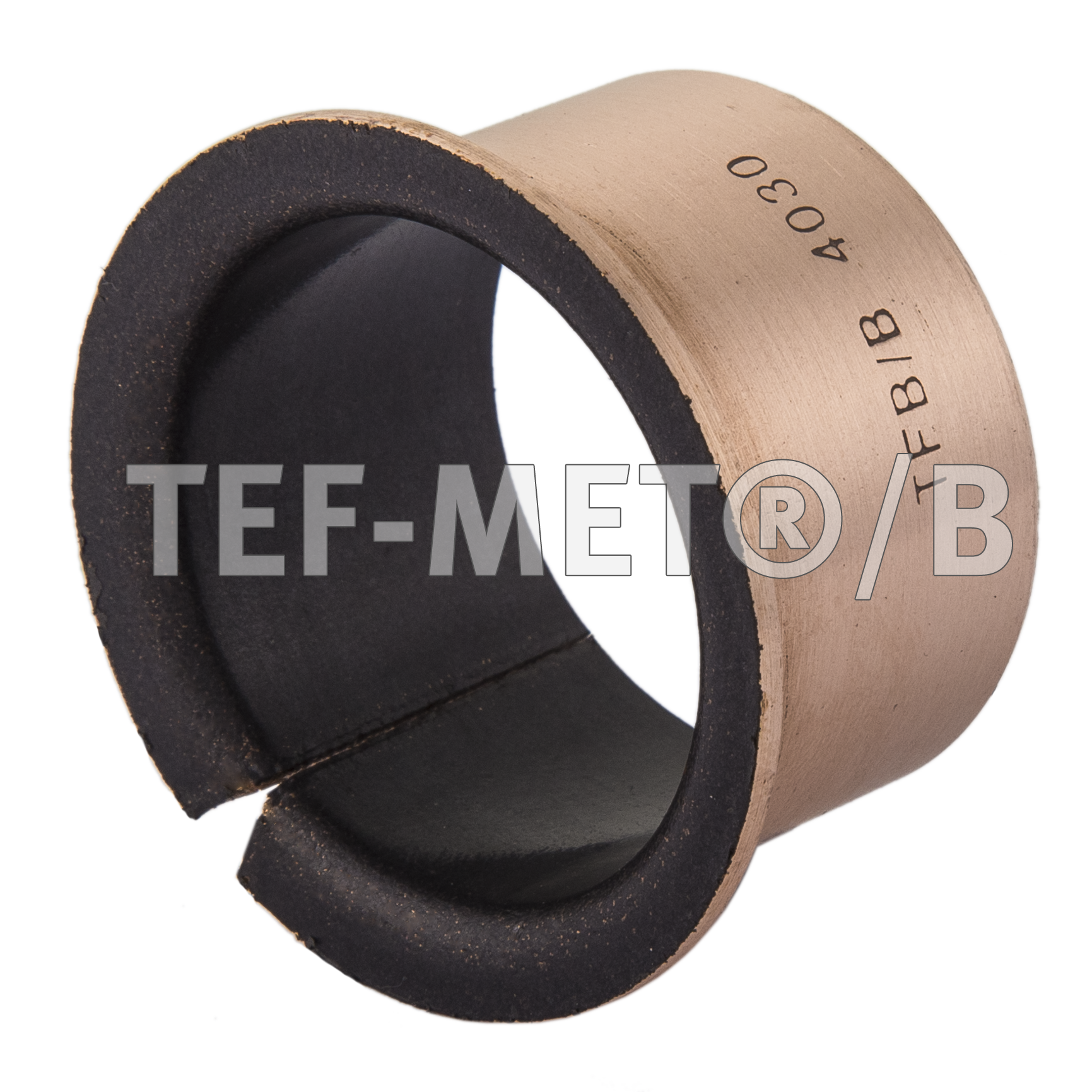

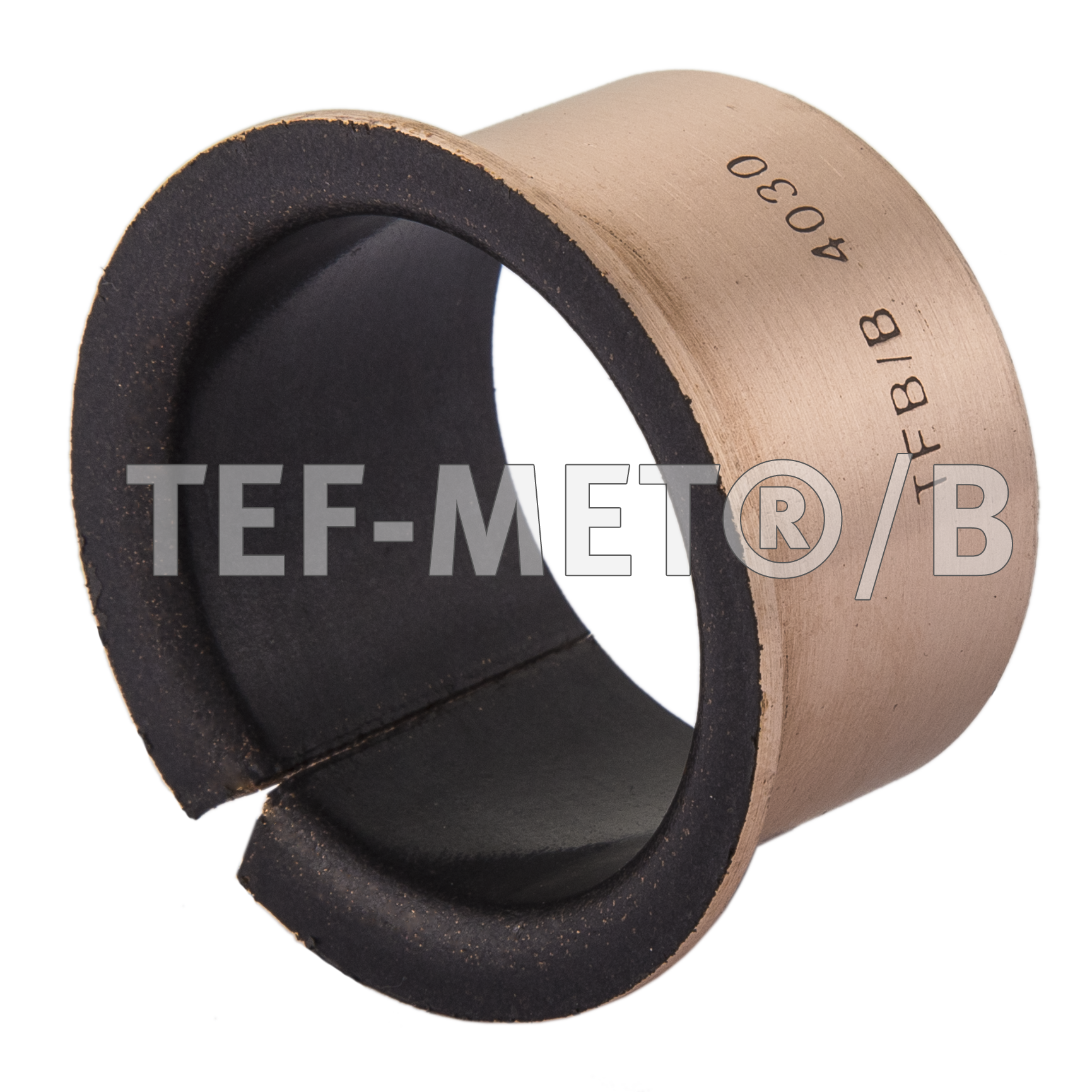

TEF-MET®/B

Wrapped sliding bearing, bronze/PTFE sliding layer, DIN 1494/ISO 3547, Maintenance-free

Technical details TEF-MET®/B

Specific load capacity static ≤ 250 [N/mm2]
Specific load capacity dynamic ≤ 140 [N/mm2]
Sliding speed ≤ 2.5 [m/s]
Friction value *** 0.03 [µ] to 0.25 [µ]
Temperature strain -200 [°C] to 280 [°C]
Max. PV-value 1.8 [N/mm² x m/s] 3,6 [N/mm² x m/s] for a short time

wrapped sliding bearing bronze ptfe sliding layer

TEF-MET®/P

Wrapped composite dry sliding bearing steel / special PTFE, lead-free, Maintenance-free

Technical details TEF-MET®/P

Specific load capacity static to ≤ 250 [N/mm2]
Specific load capacity dynamic to ≤ 140 [N/mm2] at slow sliding speed
Sliding speed ≤ 2.0 [m/s] (≤ 5 [m/s] oil lubricated) [m/s]
Friction value *** 0.02 [µ] to 0.20 [µ] (≤ 0.05 [µ] oil lubricated)
Temperature strain -195 [°C] to 280 [°C]
Max. PV-value 3.8 [N/mm² x m/s] (≤ 60 [N/mm² x m/s] oil lubricated)

NOX-MET®

wrapped bushing, stainless steel/PTFE, DIN 1494/ISO 3547, Maintenance-free

Technical details NOX-MET®

Specific load capacity static ≤ 250 [N/mm2]
Specific load capacity dynamic ≤ 140 [N/mm2]
Sliding speed ≤ 2.0 [m/s]
Friction value *** 0.02 [µ] to 0.20 [µ]
Temperature strain -200 [°C] to +280 [°C]
Max. PV-value 1.8 [N/mm² x m/s] ,for a short time 3,6

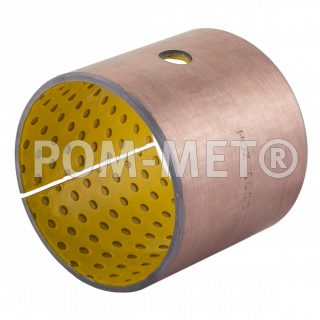

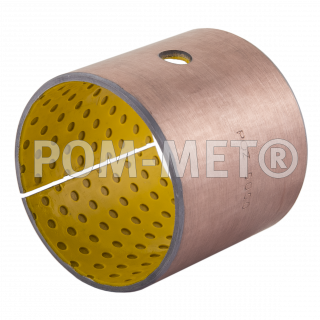

POM-MET®

Wrapped sliding bearing, wrapped bushing, steel/POM sliding layer, DIN 1494/ISO 3547, Low-maintenance

Technical details POM-MET®

Specific load capacity static ≤ 250 [N/mm2]
Specific load capacity dynamic ≤ 140 [N/mm2]
Sliding speed ≤ 2.5 [m/s]
Friction value *** 0.04 [µ] to 0.12 [µ]
Temperature strain - 40 [°C] to + 130 [°C]
Max. PV-value 2.8 [N/mm² x m/s]

wrapped sliding bearing wrapped bushing steel pom sliding layer

PIK-MET®

wrapped bushing, bronze or tin-plated steel/PEEK (Carbon & PTFE), DIN 1494/ISO 3547

Technical details PIK-MET®

Specific load capacity static 140 [N/mm2]
Specific load capacity dynamic 100 [N/mm2]
Sliding speed ≤ 2.5 [m/s]
Friction value *** 0.03 [µ] to 0.12 [µ]
Temperature strain - 150 [°C] to + 250 [°C]
Max. PV-value 2.8 [N/mm² x m/s]

wrapped bushing bronze or tin plated steel

BRO-MET®

wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance

Technical details BRO-MET®

Specific load capacity static < 120 [N/mm2]
Specific load capacity dynamic < 40 [N/mm2]
Sliding speed ≤ 2.5 [m/s]
Friction value *** 0.05 [µ] to 0.12 [µ] depending on lubrication
Temperature strain - 40 [°C] to + 250 [°C]
Max. PV-value 2.8 [N/mm² x m/s]
The percentage of contact area on the ID is > 75%

BRO-MET®/L

wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance

Technical details BRO-MET®/L

Specific load capacity static ≤ 120 [N/mm2]
Specific load capacity dynamic ≤ 40 [N/mm2]
Sliding speed ≤ 2.5 [m/s] depending on lubrication
Friction value *** 0.05 [µ] to 0.12 [µ]
Temperature strain - 40 [°C] to + 250 [°C]
Max. PV-value 2.8 [N/mm² x m/s]

BRO-LUB®

Wrapped sliding bearing,, Bronze CuSn8P, DIN 1494/ISO 3547, Maintenance-free

Technical details BRO-LUB®

Specific load capacity static ≤ 120 [N/mm2]
Specific load capacity dynamic ≤ 40 [N/mm2]
Sliding speed 0.4 [m/s]
Friction value *** 0.03 [µ] to 0.25 [µ]
Temperature strain - 100 [°C] to + 200 [°C]
Max. PV-value 1.5 [N/mm² x m/s]

BIV-MET®

Wrapped composite sliding bearing, Copper-plated or tin-plated steel/bronze, DIN 1494 / ISO 3547, Maintenance-free, With lubrication pockets

Technical details BIV-MET®

Specific load capacity static ≤ 250 [N/mm2]
Specific load capacity dynamic ≤ 140 [N/mm2]
Sliding speed ≤ 2.5 [m/s]
Friction value *** 0.04 [µ] to 0.12 [µ]
Temperature strain - 40 [°C] to + 250 [°C]
Max. PV-value 2.8 [N/mm² x m/s]
Percentage contact area > 75 [%]

wrapped composite sliding bearing Copper-plated or tin-plated steel bronze

BIV-LUB®

Wrapped bushing, steel backing/bronze sliding layer, DIN 1494 / ISO 3547, Maintenance-free, lubrication pockets filled with solid lubricant

Technical details BIV-LUB®

Specific load capacity static ≤ 200 [N/mm2]
Specific load capacity dynamic ≤ 75 [N/mm2]
Sliding speed 0.4 [m/s]
Friction value *** 0.08 [µ] to 0.22 [µ]
Temperature strain - 20 [°C] to + 200 [°C]
Max. PV-value 2,8 [N/mm² x m/s]

wrapped bushing steel backing bronze sliding layer

BIV-MET®/A

, Standard white metal bearing, Heavy maintenance

Technical details BIV-MET®/A

Specific load capacity static to ≤ 100 [N/mm2]
Specific load capacity dynamic to ≤ 70 [N/mm2]
Sliding speed ≤ 25 [m/s]
Friction value *** 0.08 [µ] to 0.17 [µ] depending on lubrication
Temperature strain -10 [°C] to +200 [°C]
Max. PV-value 6.0 [N/mm² x m/s]

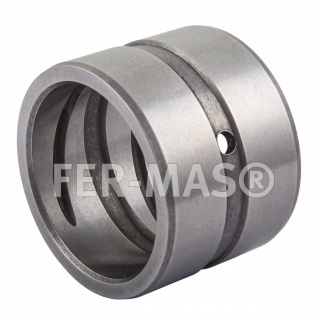

FER-MAS®

Solid bushing, Hardened and grinded steel bushing, Heavy-maintenance, Heavy maintenance

Technical details FER-MAS®

Specific load capacity static ≤ 250 [N/mm2]
Specific load capacity dynamic ≤ 150 [N/mm2]
Sliding speed ≤ 0.6 [m/s]
Friction value *** 0.05 [µ] to 0,25 [µ]
Temperature strain - 100 [°C] to + 250 [°C]
Max. PV-value 1.2 [N/mm² x m/s]
58-62 HRC

solid bushing hardened and grinded steel bushing

FER-MAN®246

Solid bushing, Impact resistant steel bushing with very high surface hardness, heat and corrosion resistant, low maintenance, Low-maintenance

Technical details FER-MAN®246

Specific load capacity static ≤ 200 [N/mm2]
Specific load capacity dynamic ≤ 100 [N/mm2]
Sliding speed ≤ 0.4 [m/s]
Friction value *** 0.12 [µ] to 0.16 [µ]
Temperature strain to + 400 [°C]

Solid bushing Impact resistant steel bushing with very high surface hardness heat and corrosion resistant

FER-MAN®259

Solid bushing, Maintenance-free steel bushing, impact-resistant, high breaking strength, able to absorb shock loadings

Technical details FER-MAN®259

Specific load capacity static ≤ 150 [N/mm2]
Specific load capacity dynamic ≤ 50-60 [N/mm2]
Sliding speed < 15 [m/s]
Friction value *** 0,2 [µ] to 0,28 [µ]
Temperature strain to < +200 [°C]
Microhardness of the sliding surface 500-550 [HV]

solid bushing maintenance-free steel bushing impact-resistant high breaking strength

FER-MET®

Wrapped steel bearing, inner and outer tension bushing, Spring steel, DIN 1498/1499

Technical details FER-MET®

GAP-MET®/S

wrapped bushing, steel/graphite impregnated bronze

Technical details GAP-MET®/S

Specific load capacity static ≤ 260 [N/mm2]
Specific load capacity dynamic < 80 [N/mm2]
Sliding speed ≤ 0.5 [m/s]
Friction value *** 0.10 [µ] to 0.18 [µ]
Temperature strain -150 [°C] to +280 [°C]
Max. PV-value 1.0 [N/mm² x m/s]

wrapped bushing steel graphite impregnated bronze

GAP-MET®/M

Solid bronze bushing, high-compressed with evenly applied lubricant, maintenance-free

Technical details GAP-MET®/M

Specific load capacity static ≤ 250 [N/mm2]
Specific load capacity dynamic ≤ 130 [N/mm2]
Sliding speed ≤ 0.5 [m/s]
Friction value *** 0.10 [µ] to 0.20 [µ]
Temperature strain -50 [°C] to +350 [°C] (+650 possible)
Max. PV-value 1.5 [N/mm² x m/s]

SIB-MET®

solid bushing, sintered bronze bushing, oil soaked, maintenance-free, DIN 1850/ISO 2795, Maintenance-free

Technical details SIB-MET®

Specific load capacity static < 18 [N/mm2] to 50 [N/mm2] for SINT A51
Specific load capacity dynamic < 5 [N/mm2]
Sliding speed 6.0 [m/s]
Friction value *** 0.05 [µ] to 0.2 [µ]
Temperature strain -20 [°C] to +100 [°C]
Max. PV-value 1,6 [N/mm² x m/s]

solid bushing sintered bronze bushing oil soaked

COM-KU®/X

extruded thermoplast plastic bushing, Maintenance-free

Technical details COM-KU®/X

Specific load capacity static ≤60 [N/mm2]
Specific load capacity dynamic ≤30 [N/mm2]
Sliding speed <1.7 [m/s]
Friction value *** 0.08 [µ] to 0.18 [µ] at velocity 1 m/min
Temperature strain -150 [°C] to + 70 [°C] short term +90°C
Max. PV-value 3.5 [N/mm² x m/s] dep. on environ. conditions
Moisture absorption 0.3 [% at 20°C in 24h]

COM-KU®/S

Thermoplastic plastic sliding bearing, plastic, Maintenance-free, Compound plastic produced by injection-molding*

Technical details COM-KU®/S

Specific load capacity static ≤ 70 [ N/mm² ] dep. on temperature and length of strain [N/mm2]
Specific load capacity dynamic ≤ 40 [ N/mm² ] dep. on temperature and sliding speed [N/mm2]
Sliding speed < 1,0 [ m/s ] [m/s]
Friction value *** 0,08 - 0,20 [ µ ] [µ]
Temperature strain -50 [°C]
Max. PV-value 0,6 [ N/mm2 x m/s ] [N/mm² x m/s]

thermoplastic plastic sliding bearing plastic

TEX-MAS®

Solid Bronze Bushing with glued in PTFE fabric on the sliding layer, also available in stainless steel, Maintenance-free

Technical details TEX-MAS®

Specific load capacity static ≤420 [N/mm2]
Specific load capacity dynamic ≤180 [N/mm2]
Sliding speed ≤0,16 [m/s]
Friction value *** 0,03 [µ] to 0,07 [µ]
Temperature strain -50 [°C] to +150 [°C] (shortly up to +180)

solid bronze bushing with glued in PTFE fabric on the sliding layer

FLO-MAS®

Water-lubricated pump bearing, Various rubber linings available, Metallic and non-metallic bearing shells

Technical details FLO-MAS®

Sliding speed < 35 [m/s] dry

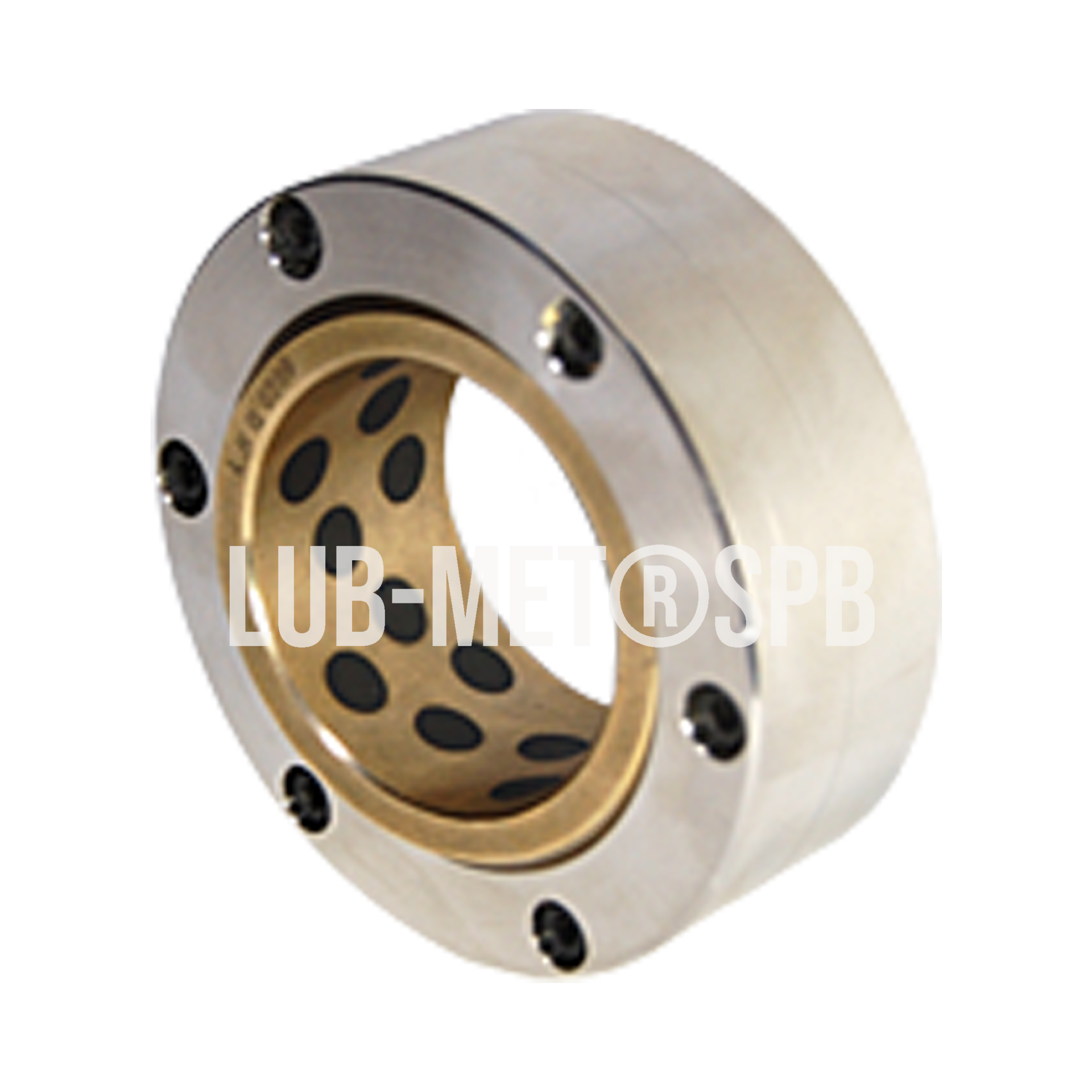

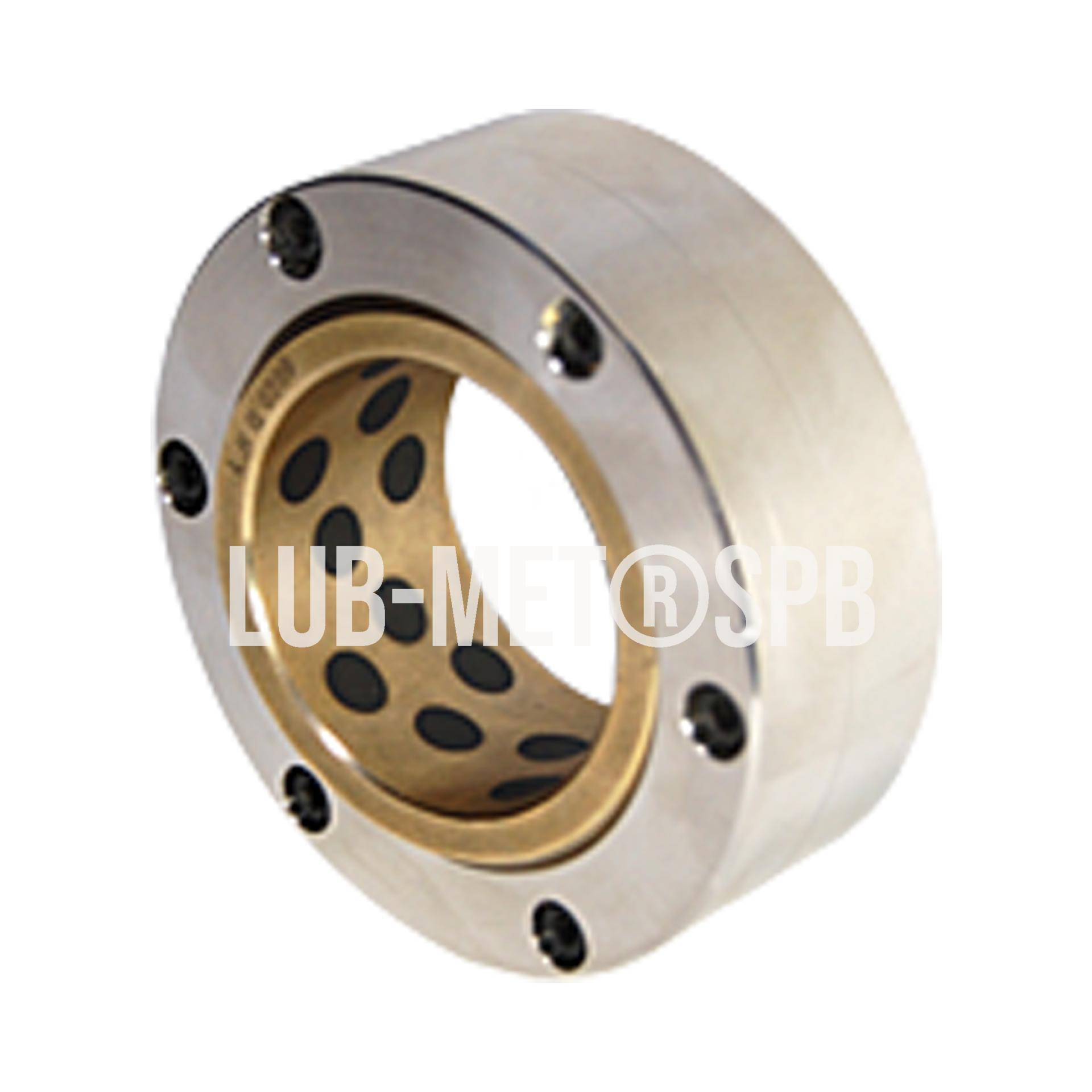

LUB-MET® Spherical Plain Bearing

stainless steel combination, Special spherical plain bearings with maintenance-free LUB-MET ball, Maintenance-free

Technical details LUB-MET® Spherical Plain Bearing

WithLUB-MET® sliding properties All LUB-MET® type spherical plain bearings are maintenance-free Standard production according to DIN dimenstions Special measurements and designs are produced at short notice! This sliding material causes no threat to health and environment (if ordered lead-free)!

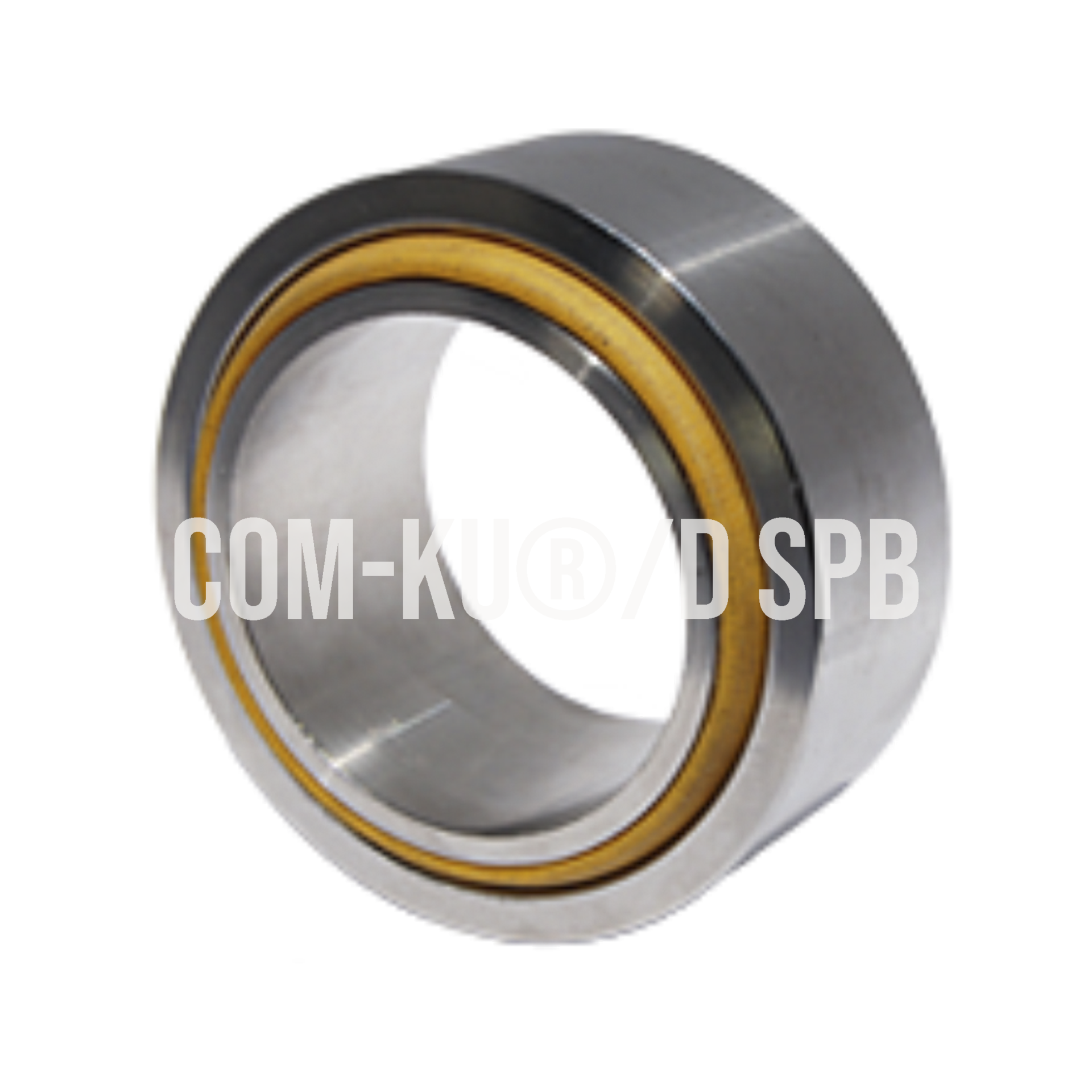

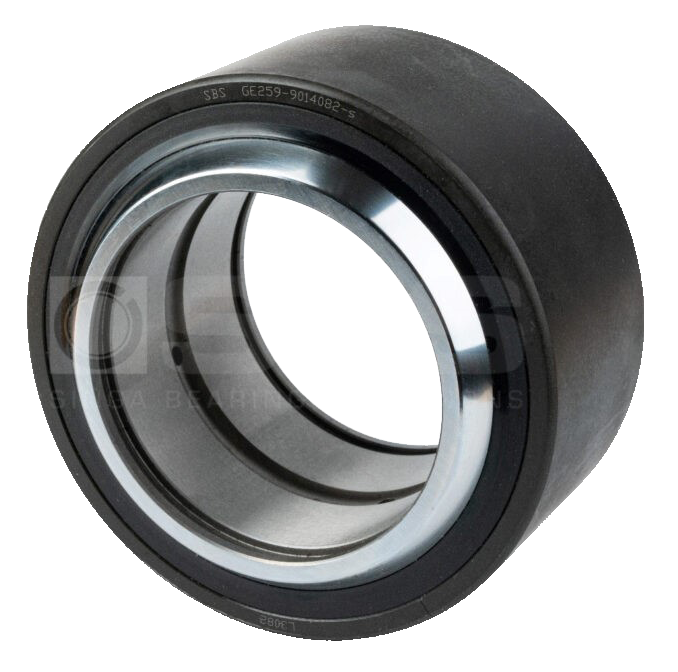

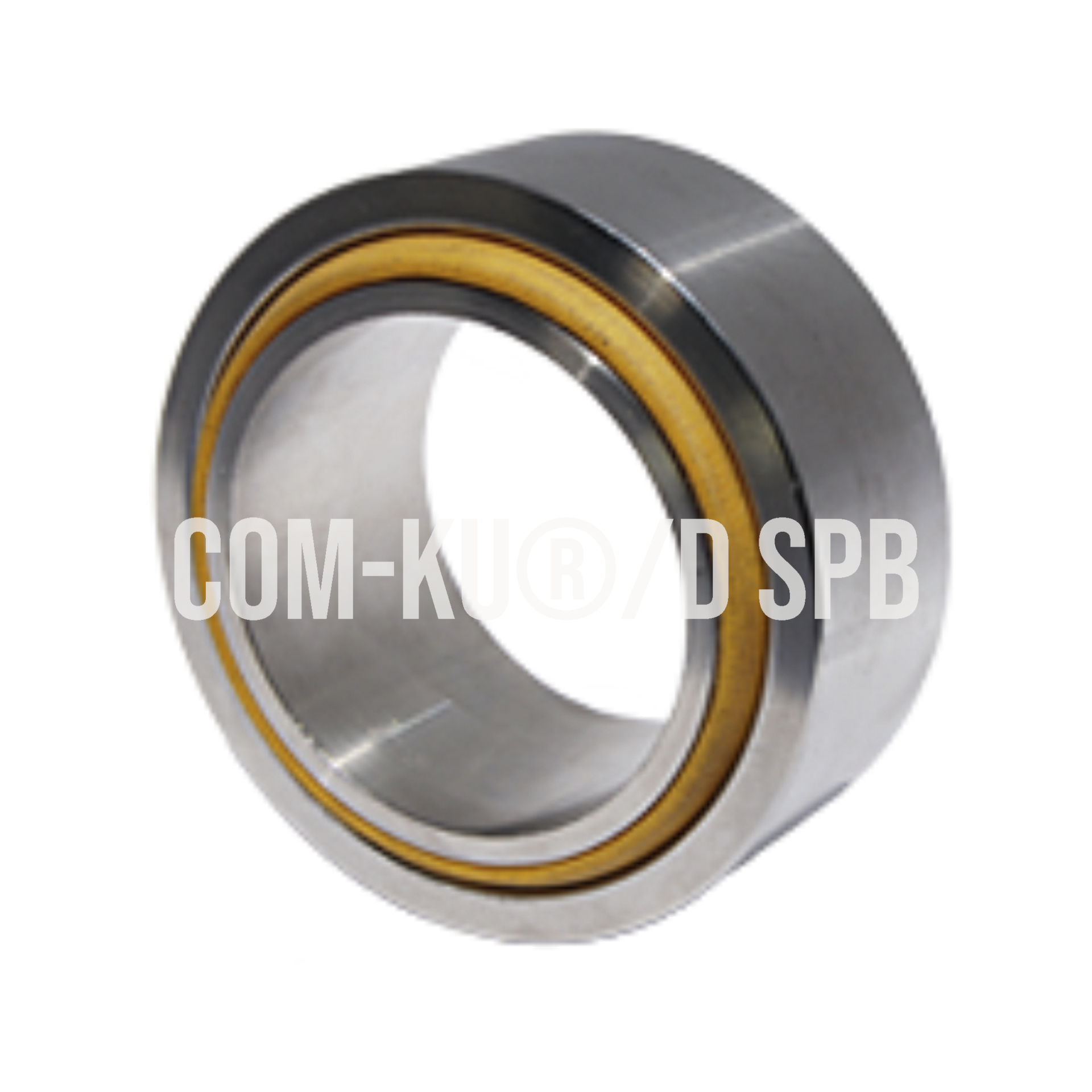

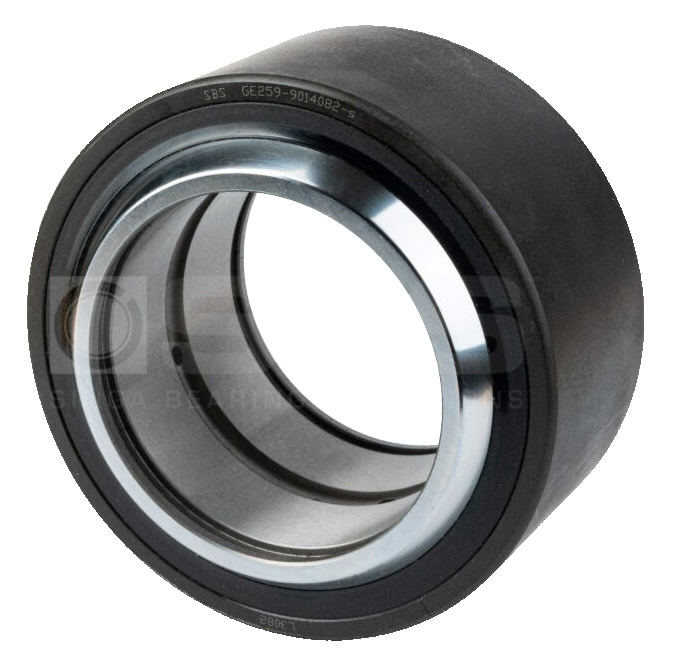

COM-KU®/D Spherical Plain Bearing

stainless steel bearing, compatible with all DIN - spherical plain bearings, Maintenance-free

Technical details COM-KU®/D Spherical Plain Bearing

Stainless steel outer ring / COM-KU®/D ball * also available with stainless steel inner ring as fixed bearing ISO 6124 (ND Serie) and ISO 6124/3 (HD Serie) Maintenance-free Can be exchanged with all DIN - joint bearings Also suitable for water and seawater applications This sliding material does not pose a threat to the environment!

Spherical plain bearings & Rod ends

Technical details Spherical plain bearings & Rod ends

Spherical plain bearings (maintenance-free and maintenance-bound) Rod ends (maintenance-free and maintenance-bound) Ball joint ends (Screw on and welded)

Flat slide Support Bearing

Technical details Flat slide Support Bearing

Fixed Bearing

Technical details Fixed Bearing

Spherical Slide Support Bearing

Technical details Spherical Slide Support Bearing

Bearing plate for welding

Steel plate, Maintenance-free

Technical details Bearing plate for welding

Specific load capacity static to 250 [N/mm2]
Specific load capacity dynamic 0.05 [N/mm2] to 1.0 [N/mm2]
Temperature strain -70 [°C] to 250 [°C] For bearings for high temperature applications up to 500 [° C]
